Aquasystem

Indirect refrigeration: C3 series

Cooling system with solid storage

  • capacity and production from +18°C to +3°C: see model table
  • external structure in Aisi 304 stainless steel
  • internal tank insulated by polyurethane rigid foam injected at high density
  • inner pipeline of the coil in Aisi 304 stainless steel
  • removable cover
  • incorporated air-condensing unit
  • equipped with electronic temperature control, water inlet (1/2”), water outlet (1/2”), overflow (diam. 12 mm), bracket for wall installation and kit for water dr



Direct refrigeration: C series

Traditional cooling system with liquid storage

  • tank capacity 175 litres – prod/h 100 l from +18°C to +3°C
  • external structure in galvanized sheet white colour
  • interior in Aisi 304 stainless steel, cooling coil included
  • removable cover
  • incorporated air-condensing unit
  • equipped with thermostat, thermometer, water inlet (1/2”), water outlet (3/4”), overflow (3/4”) and connections.

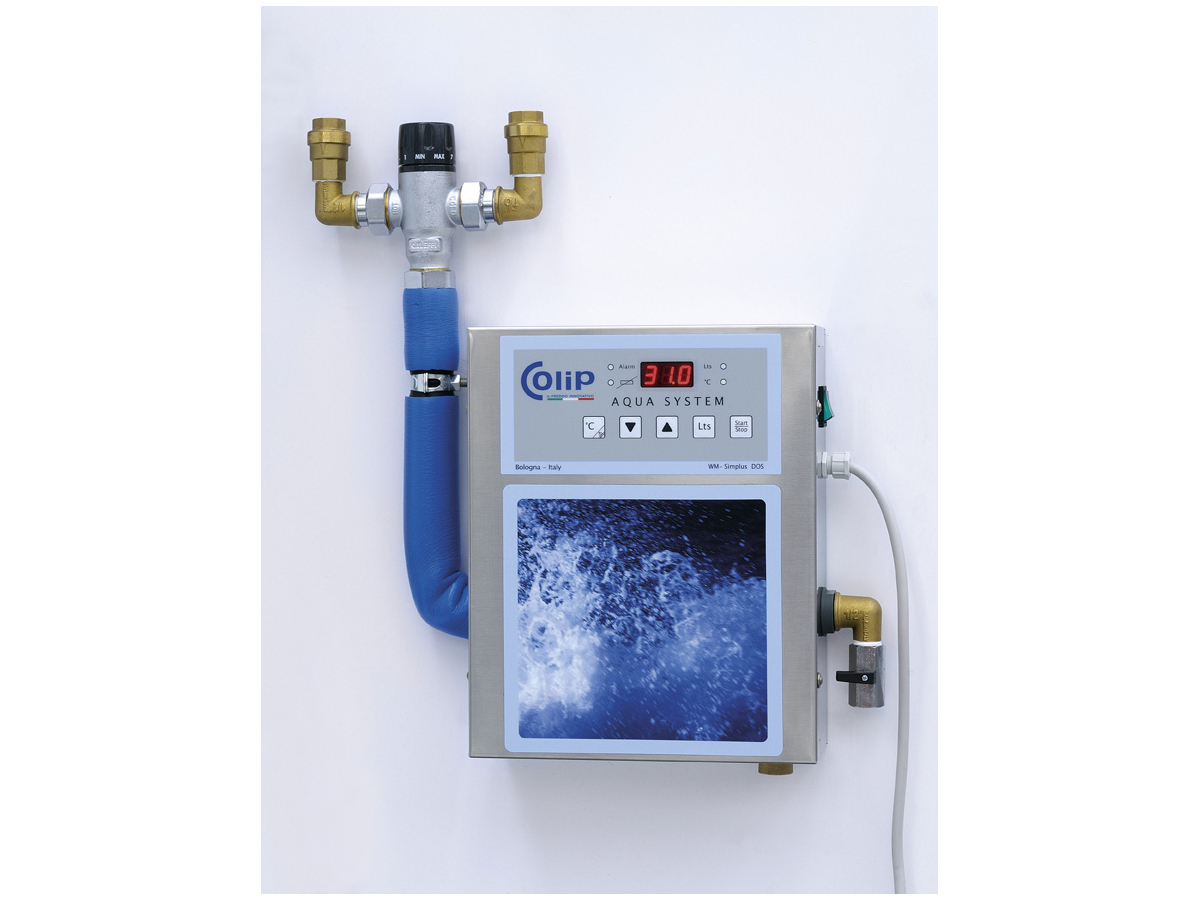

Dosing and mixing control units as per attached table (download)

Download

aquasystem.pdf

AQUASYSTEM s.C / s.C3 / WM - standard mod.

dosing_mixing_control_units.pdf

AQUASYSTEM dosing - mixing control units
